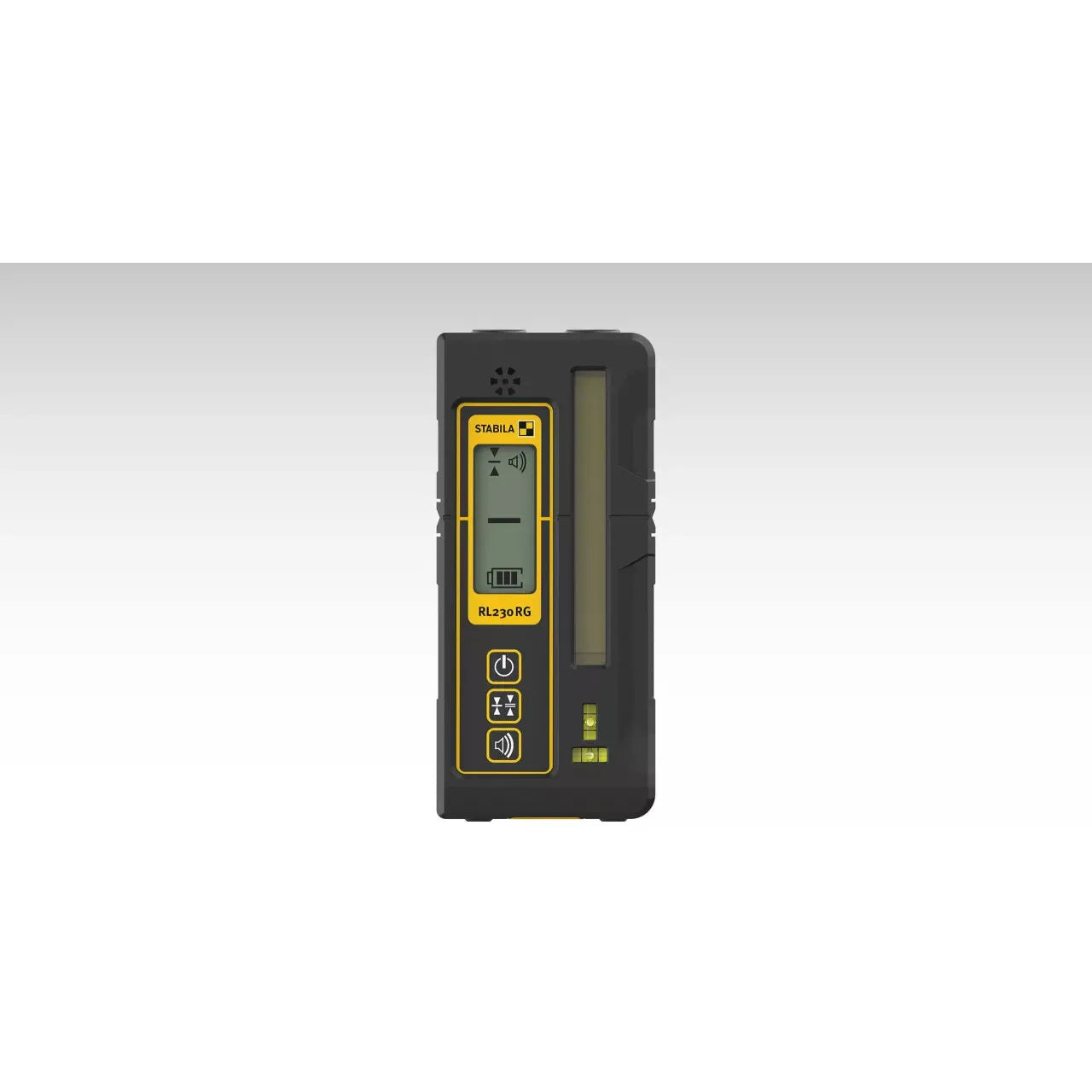

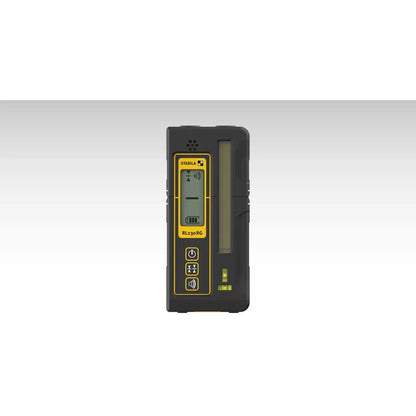

Stabila Line receiver RL 230 RG

Work with precision over large distances: the RL 230 RG receiver is the perfect accessory for green and red line lasers. It accurately determines the position of a pulse-modulated laser line relative to the reference level, even over large distances and when the line is no longer visible. With displays on front and back, illuminated digital display, acoustic guidance and two sensitivity levels, it has the flexibility to handle any measurement job. Waterproof and dustproof to the IP 66 protection rating, the receiver can be mounted in various ways and is designed for professional use on the construction site.

• Laser receiver for accurately determining the beam position of pulse-modulated line lasers with green or red laser diodes – even over large distances or in bright sunlight.
• Digital displays on front and back for fast work – illuminated at the touch of a button.
• Visual display: arrow symbols on the display indicate the position of the receiver relative to the laser's reference level.
• Acoustic guidance can be activated, with beeping tones in adjustable volume (loud: 105 db, quiet: 85 db).
• Two sensitivity levels can be set to suit the task in hand – 'fine' with a sensitivity of ± 1 mm or 'approximate' with a sensitivity of ± 3 mm for larger measuring distances.
• Waterproof and dustproof in accordance with protection rating IP 66.

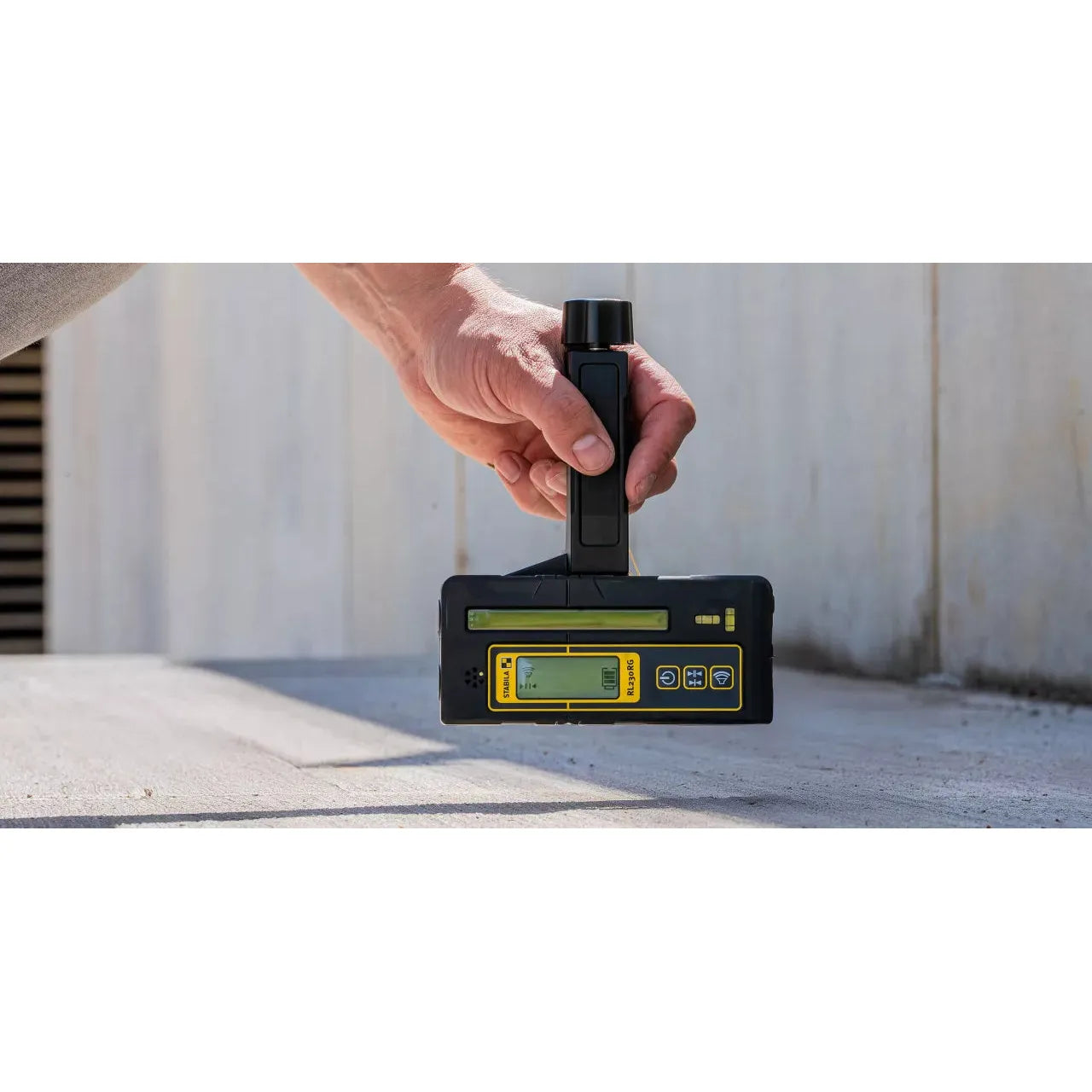

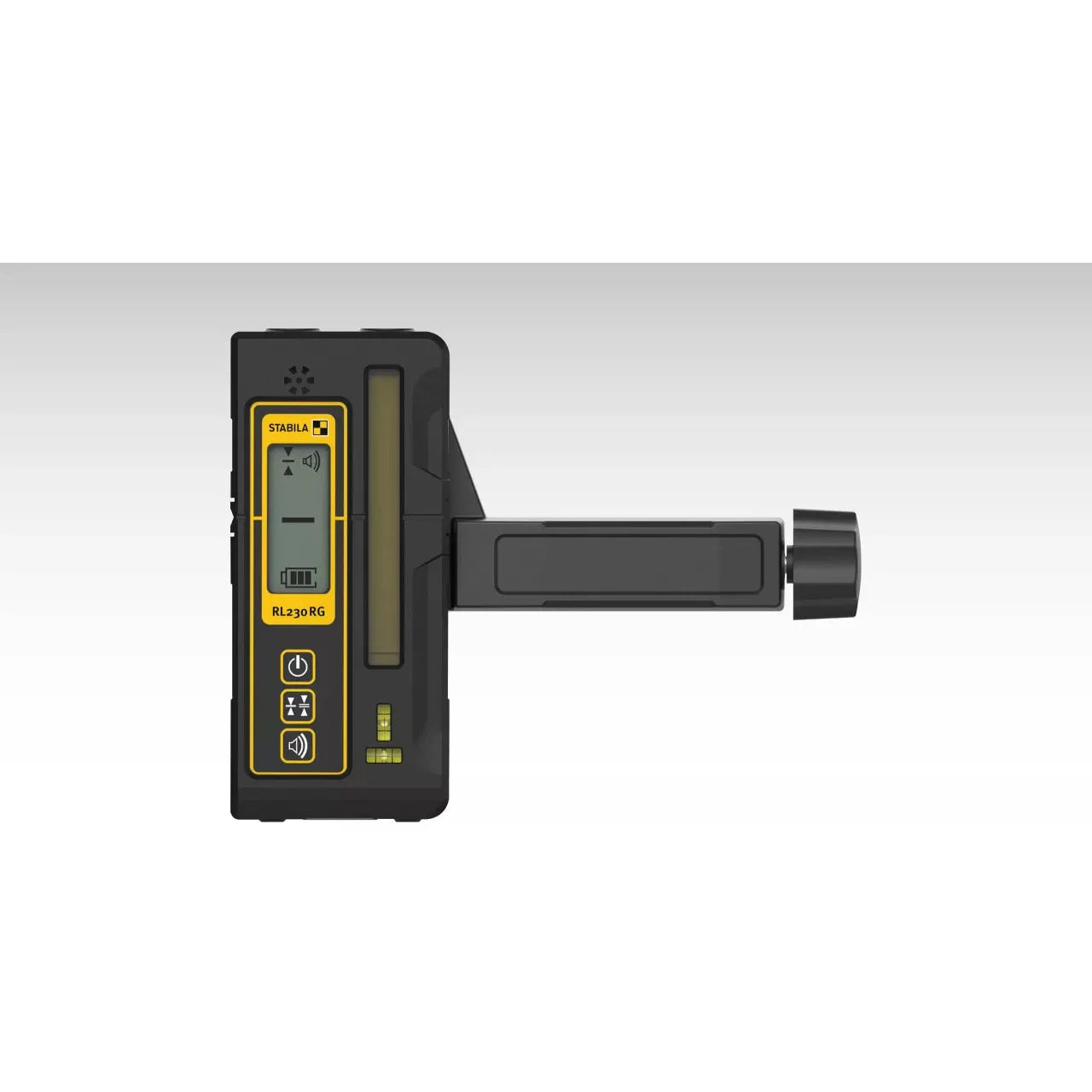

• Range of mounting options – holder for attaching to levelling rods as well as integrated magnet system.
• Battery status display.
• Height of receiving area: 90 mm.
• Battery life: 45 hours.
